Metal Bellow Seals
Seal Art India Pvt. Ltd. has a variety of Mechanical Seals which are giving best and revolutionary solutions
to its customers. Kindly, download catalogue for more details.

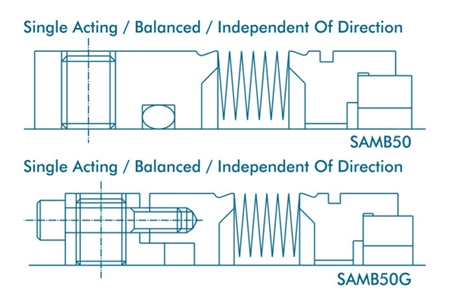

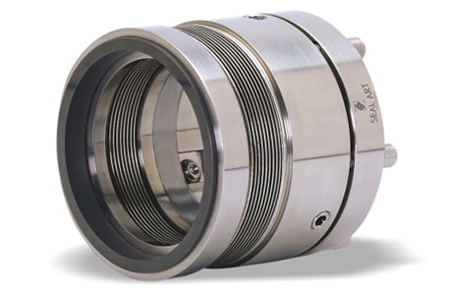

Seal Art Metal Bellow Seal (SAMB50/SAMB50G)
Faces : Carbon / Sic. / Tungsten Carbide
Bellow Material : AM350
Secondary Seals : Viton / Aflas / FEP / PTFE / FFKM
Hardware : SS316 / Carpenter-42
Shaft Dia : 18.0mm...100.0mm 3/4"...4.0"
Pressure : 6.0bar (max...)
Temprature : -45'C TO 120'C
Velocity : 20.0m/s
Generally used for handling highly corrosive chemicals, high temperature applications, petroleum refinery etc.

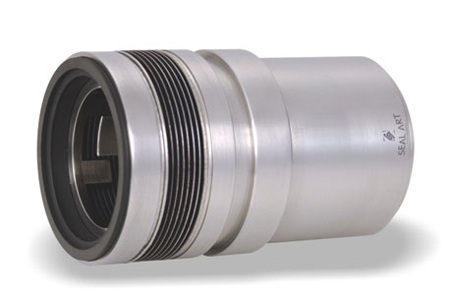

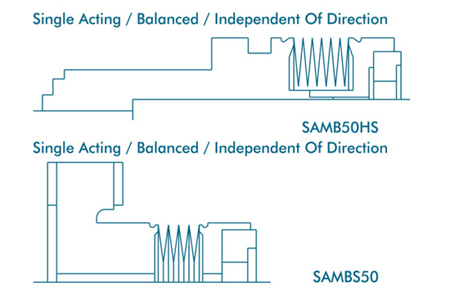

Seal Art Metal Bellow Seal (SAMB50HS/SAMBS50)
Faces : Carbon / Sic. / Tungsten Carbide
Bellow Material : AM350
Secondary Seals : Viton / Aflas / FEP / PTFE / Grafoil
Hardware : SS316 / Carpenter-42
Shaft Dia : 18.0mm...100.0mm 3/4"...4.0"
Pressure : 6.0bar (max...)
Temprature : -45'C TO 120'C
Velocity : 20.0m/s
Generally used for handling highly corrosive chemicals, high temperature applications, petroleum refinery etc.
