Multi Spring Seals
Seal Art India Pvt. Ltd. has a variety of Mechanical Seals which are giving best and revolutionary solutions
to its customers. Kindly, download catalogue for more details.

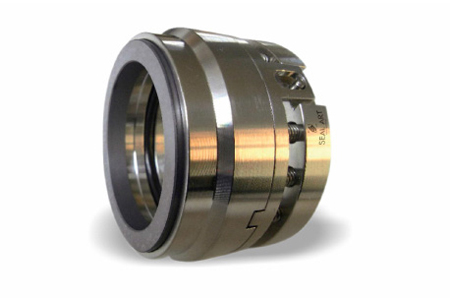

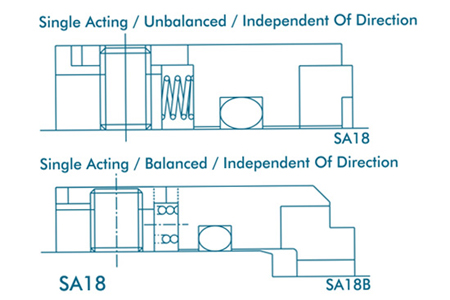

Seal Art Multi Spring Seal O-Ring (SA18/SA18B)
Faces : Carbon / Ceramic / Sic. / Tungsten Carbide
Secondary Seals : Viton / PTFE / FEP / GFT
Hardware : SS316 / HAST-C / ALLOY-20
Shaft Dia : 12.0mm...100.0mm 0.5"...4.0"
Pressure : 25.0bar (max...)
Temprature : -20'C TO 180/240'C
Velocity : 10.0m/s-15.0m/s
Generally used for handling Slurry, corrosive chemicals, hydrocarbons, general & light chemicals.

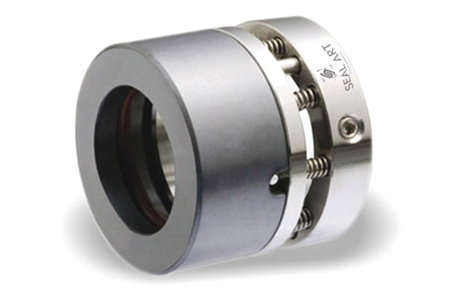

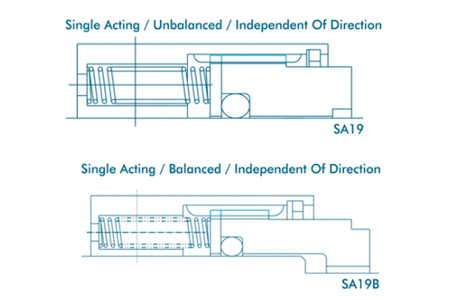

Seal Art Multi Spring Seal O-Ring (SA19/SA19B)
Faces : Carbon / Ceramic / Sic. / Tungsten Carbide
Secondary Seals : Viton / PTFE / FEP / GFT
Hardware : SS316 / HAST-C / ALLOY-20
Shaft Dia : 12.0mm...100.0mm 0.5"...4.0"
Pressure : 10.0/25.0bar (max...)
Temprature : -40'C TO 220'C
Velocity : 20.0m/s
Generally used for handling Slurry, corrosive chemicals, hydrocarbons, general & light chemicals.

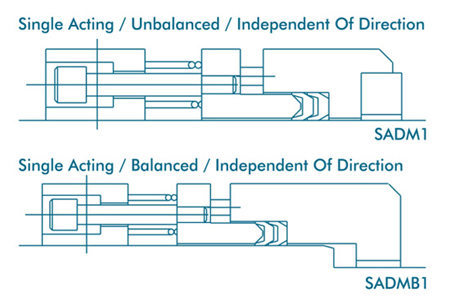

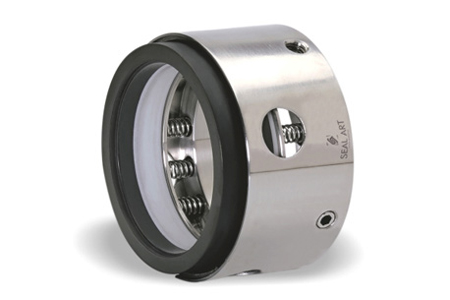

Seal Art Multi Spring Seal O-Ring (SADM1/SADMB1)
Faces : Carbon / Ceramic / Sic. / Tungsten Carbide
Secondary Seals : Viton / PTFE / FEP / GFT
Hardware : SS316 / HAST-C / ALLOY-20
Shaft Dia : 12.0mm...100.0mm 0.5"...4.0"
Pressure : 10.0bar (max...)
Temprature : -40'C TO 240'C
Velocity : 23.0m/s
Generally used for handling Slurry, corrosive chemicals, hydrocarbons, general & light chemicals.
